Butterfly Valves

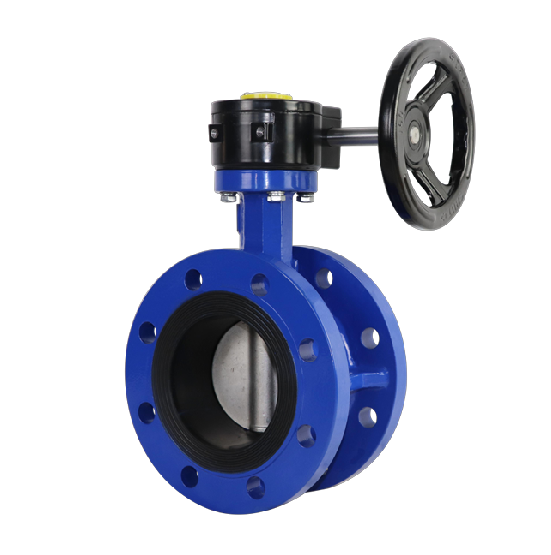

FBLC – Concentric Flange Butterfly Valve
Resilient seated, pinless design. DN100–DN1200, PN10/PN16.
Product Description
The FBLC is a resilient-seated concentric butterfly valve with a pinless disc design that eliminates the corrosion and leakage path associated with conventional pin/stem connections. The EPDM seat is moulded integrally into the body, providing a positive bubble-tight seal. Fusion-bonded epoxy coating provides corrosion protection for buried or wet-well service. Available with handwheel, gearbox or electric actuator.
Specifications
Size rangeDN100–DN1200
PressurePN10 / PN16
MaterialDuctile iron body & disc, EPDM seat, fusion-bonded epoxy coated
ConnectionFlanged to EN 1092-2 PN10/PN16
Approvals & Certifications
WRASWater Regulations Advisory Scheme: UK approval for use in drinking water systemsISO 9001International quality management system certificationCE MarkMeets EU safety, health and environmental requirements
Standards
EN 593EN ISO 5752EN 1074-2
Typical Applications
- Water distribution
- Raw water
- Treated effluent
- Irrigation
- Water treatment plants
Request a Quote
Send us your size, pressure rating and quantity and we will respond with pricing and full technical documentation, typically within one working day.
Request a Quote or email info@afcvalves.euAt a glance
- Sizes
- DN100–DN1200
- Pressure
- PN10 / PN16
- Connection
- Flanged to EN 1092-2 PN10/PN16
