Ratio Pressure Reducing Valves

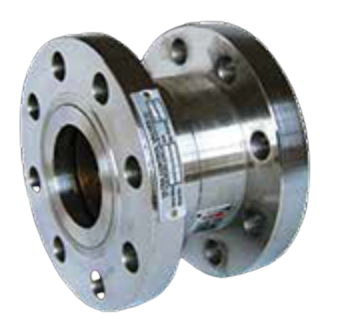

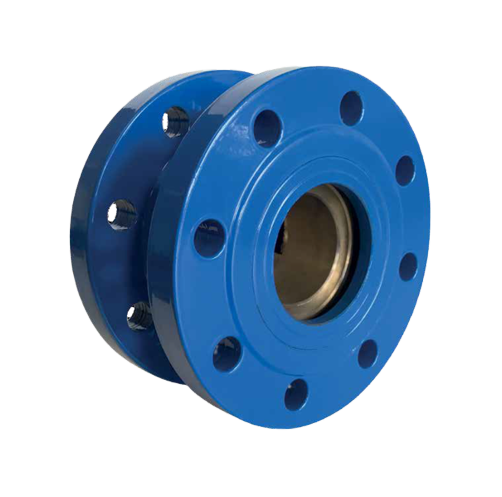

ACV Ratio Reducing Valve
Fixed-ratio PRV for network pressure management.
Product Description
The ACV ratio reducing valve maintains a fixed ratio between upstream and downstream pressure: as inlet pressure varies, the outlet pressure varies proportionally. This is particularly useful on systems where demand patterns cause large upstream pressure fluctuations, as it avoids the very low outlet pressures that a fixed-set-point PRV would deliver at low inlet pressures. Fully hydraulic, no external power required.
Specifications
Size rangeDN50–DN400
PressurePN16
MaterialDuctile iron body, rubber-lined diaphragm, stainless pilot
ConnectionFlanged to EN 1092-2 PN16
Approvals & Certifications
WRASWater Regulations Advisory Scheme: UK approval for use in drinking water systemsISO 9001International quality management system certification
Standards
EN 1074-5
Typical Applications
- Trunk main pressure management
- Variable inlet pressure systems
- District metered areas
- Pressure zone management
Request a Quote
Send us your size, pressure rating and quantity and we will respond with pricing and full technical documentation, typically within one working day.
Request a Quote or email info@afcvalves.euAt a glance
- Sizes
- DN50–DN400
- Pressure
- PN16
- Connection
- Flanged to EN 1092-2 PN16
