Product Description

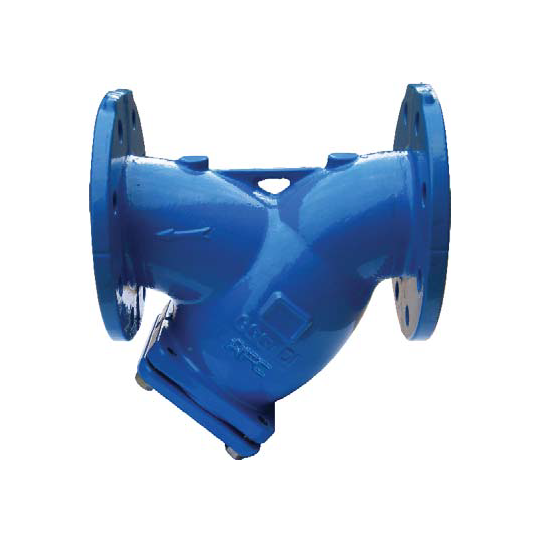

The WSTX Y-strainer protects downstream valves, meters and equipment from pipeline debris. The Y-body configuration minimises headloss while directing flow through a stainless steel mesh screen. The removable blowdown plug allows the screen to be cleaned under pressure without removing the strainer from the pipeline. Available in cast iron and ductile iron body materials with a range of mesh sizes from 0.5mm to 3mm.
Specifications
Size rangeDN15–DN600
PressurePN10 / PN16
MaterialCast iron or ductile iron body, stainless steel mesh screen
ConnectionFlanged to EN 1092-2 / threaded BSP (small sizes)
Approvals & Certifications
WRASWater Regulations Advisory Scheme: UK approval for use in drinking water systemsISO 9001International quality management system certification
Standards
EN 13160
Typical Applications
- Control valve protection
- Meter protection
- Pump suction protection
- Potable water
- Process water
Request a Quote
Send us your size, pressure rating and quantity and we will respond with pricing and full technical documentation, typically within one working day.
Request a Quote or email info@afcvalves.euAt a glance
- Sizes
- DN15–DN600
- Pressure
- PN10 / PN16
- Connection
- Flanged to EN 1092-2 / threaded BSP (small sizes)
